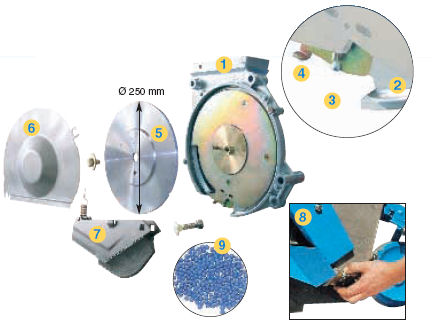

Meca V4 Distribution

1. Cast aluminium box
The metering box is made from cast aluminium. Year after year the metering will always be just as accurate and this no matter the variations in temperature.

2.Interchangeable insert
Interchangeable insert on the whole inner periphery of the metering box.

3. Brush

4.Ejector

5.Discs
Metering by vertical cell wheel with internal feed system. Large diameter discs (250mm) for exceptional accuracy even at high working speed. For normal sized pelleted sugar beet and chicory seeds.

6.Cover
Stainless steel housing of the disc.

7.Show
Shoe with interchangeable tip. Easy access to the metering by pivoting the shoe without tool

8.Total emptying
Minimun reserve of seed and total emptying by trap door.

9.Seeds
For normal sized pelleted sugar beet and chicory seeds.
